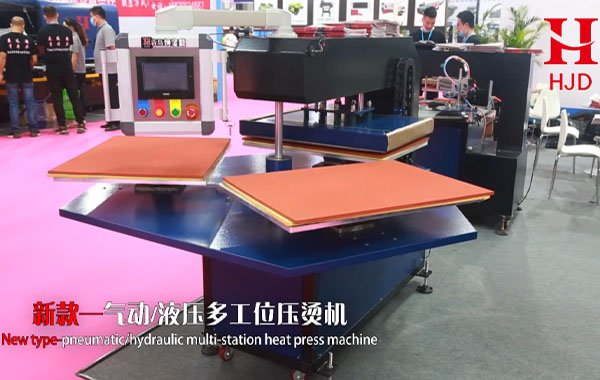

HJD-K8-1 Pneumatic/hydraulic Multi-station Heat Transfer Machine

Video

Features:

The multi-station heat transfer machine is a patented product of our company. It works in a three/six-station rotary type, so it has a good production effect. It is especially suitable for orders that require difficult positioning and positioning. The motor is directly connected to rotate and stable vibration Small, gantry-type work frame, stable structure, as stable as hydraulic work, ensuring process problems such as printing, hot stamping, foaming, etc., high-pressure sponge and silicone pad basically cover all working conditions, the rotating system has a simple and reliable structure, and it is difficult to maintain using standard parts. Lower, let you buy at ease, worry-free use!

Detail Drawing

Display Screen

Display Screen

Laser Positioning

Laser Positioning

Control Box

Control Box

Parameter

Printing Area

40*60cm

Maximum Temperature

260℃

Time

0-999秒

Voltage

220V

Power

Pneumatic 4500W

Hydraulic5200W

Dimensions

2000*1700*1320mm

Maximum Working Pressure

7mpa

Number of Plate

4

Power System

Pneumatic/Hydraulic


Printing Area

60*80cm

Maximum Temperature

260℃

Time

0-999秒

Voltage

220V

Power

Pneumatic 7500W

Hydraulic8250W

Dimensions

2100*1900*1500mm

Maximum Working Pressure

7mpa

Number of Plate

3

Power System

Pneumatic/Hydraulic


Choose us, worry-free after-sales

01 Hardware training

Digital printer principle training

Digital printer equipment system components

Operating equipment hardware and programs

Maintenance of equipment parts

Handling of common faults

02 Software training

Printing and typesetting rip software installation

PHOTOSHOP picture processing channel

Print typesetting operations

Selection and modification of color software

Operation, management and maintenance of software

03 Free warranty period

Warranty Time:1 Year

In response to customer problems, after-sales communication groups will be established to help you at any time

During the free warranty period, the damage to equipment parts caused by man-made illegal operations shall be borne by the customer

The company bears the cost of all accessories (except Print Head and consumables) during the free warranty period

Lifetime maintenance service
